PhaseCap Energy Plus NEW!
– Most comprehensive range of superior capacitors
– MKK-technology with wavy cut and heavy edge
– Voltage range: 230 … 1000 V
– Output range: 5.0 … 60 kvar

PhaseCap Energy Capacitors
– Cylindrical aluminium cases
– Nitrogen gas impregnation
– Up to 60 kVAr , 1000 V

PhaseCap Premium Capacitors
– Cylindrical aluminium cases
– Nitrogen gas impregnation
– Up to 33 kVAr , 800 V

PhaseCap HD Capacitors
– Cylindrical aluminium cases
– Resin impregnation
– Up to 60 kVAr , 525 V

PhaseCap Compact Capacitor
– Dielectric: Polypropylene film
– Non-PCB, semi-dry biodegradable resin
– Up to 30 kVAr , 900 V

PhiCap
– Compact design in cylindrical aluminum can with stud
– Stacked winding
– Up to 20 kVAr , 525 V

PoleCap Capacitors (outdoor)
– Cylindrical aluminium cases
– Nitrogen gas impregnation
– Up to 25 kVAr, 440 V

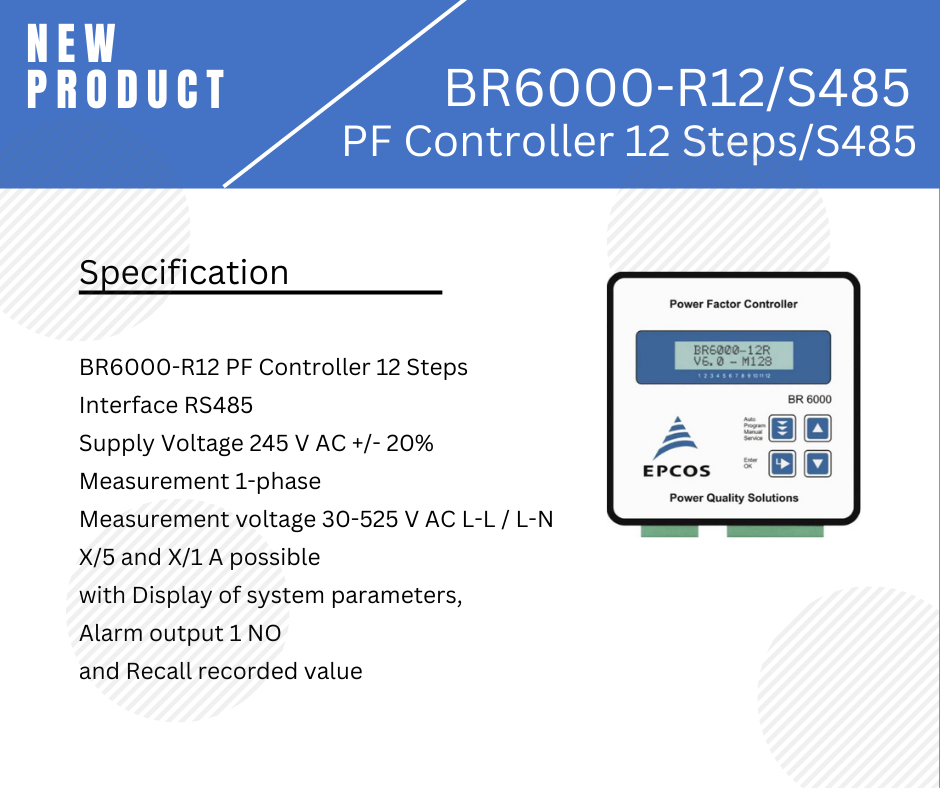

PFC Controllers Automatic
– Power Factor Controller
– Multi – meter functions
– Protection and alarm
– Harmonic analyzer

Contactors for capacitor switching AC6-b
– Equipped with damping device Avoid voltage sags
– Increase life time of contactors

Discharge Reactors
– Fast discharge of capacitor voltage Fast reconnection of capacitors Reduce losses
– Reduce ambient temperature
– Increase life time of capacitor

Thyristor Modules and Accessories
– TSM-LC-I: Single-phase, for direct
– 2-phase switching of capacitive loads (L-N) or (L-L)
– TSM-LC-S: Triggering of the module via system bus (patch cable) from PF-controller BR7000-I-TH/S485
– Up to 32 devices at supported by controller

Motor Run Capacitor
– Polypropylene film
– Low dissipation factor
– High insulation resistance

Reactors – Antiresonance harmonic filter
– Prevent system resonance
– Prevent amplification of harmonics
– Reduce harmonics

PQvar Series (SVG) Stepless PFC
– Compensate inductive and capacitive reactive power
– Active load balancing
– Voltage: 240 … 690 V
– Reactive power range per module: 30 … 200 kvar
– Filter power per panel: up to 800 kvar

PQSine S-series-System Active Harmonic Filter and Power Optimizer

MV capacitor
– Oil impregnated all-polypropylene capacitor (APP)
– Stainless steel grade container
– High reliable design with edge folding construction
– Voltage range: 3600 … 40 000 V
– Capacitance range: 0.1 … 0.5 µF

Vacuum Contactors
– Rated voltage: 6.6 / 11 kV
– Highest system voltage: 7.2 / 12 kV
– Rated frequency: 50 / 60 Hz
– BIL: 20 kV AC / 60 kV peak
– 28 kV AC / 75 kV peak

Microswitch NVS-5
– Is mounted on fuse-links type M
– Rated current: ~5A
– Rated voltage: ~125V-~250V

Protective terminal cover ip54

System 60Classic
-Large current range of the system thanks to the use of different busbars
-Safe, space saving and clearly arranged in its design
-Wide range of components
-Many of the components comply with UL 508 requirements

NH Fuse switch , Fuse bases and HRC Fuses
– Busbar mounting
– Panel mounting
– Fuse
– Shock protection coves

Fuse link D02 gG, E18, 400 V
SEMICOND FUSE

Fuse link
NH Fuse Links
Cylindrical fuse

Motor
Ventilation
Fan
